Certification Information

Functional Features

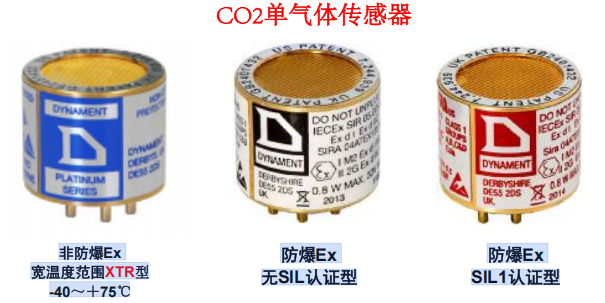

• Composed of optical components, electronic circuits and external structural hardware, with temperature compensation function and excellent linear output signal.
• Digital signal output, optional analog output: Directly replace catalytic element bridge signal, industrial standard 0.4-2VDC voltage signal
• Multiple range options for CO₂ sensors: 0-500ppm to 10000ppm optional, 0-1%vol to 100%vol optional
• Wide-temperature XTR type sensor (temperature range: -40℃ ~ +75℃), such as CH₄ sensor 0-5%vol, suitable for different industrial environment requirements
• Parameters such as sensor range, baud rate, etc. can be set to meet user requirements before delivery
• Equipped with USB interface test box device
• Support technical update of the sensor via external equipment
• Improved T90 response time (refer to the parameter table for specific response time) and enhanced EMC protection

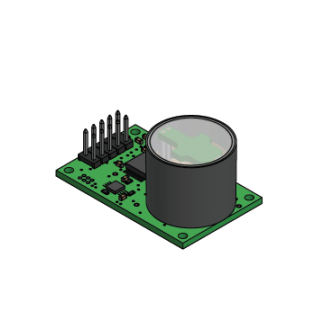

• Can provide 8mA ultra-low power consumption type, 15mA low power consumption type, 140mA high anti-condensation type or high anti-magnetic type sensors according to customer's usage requirements
