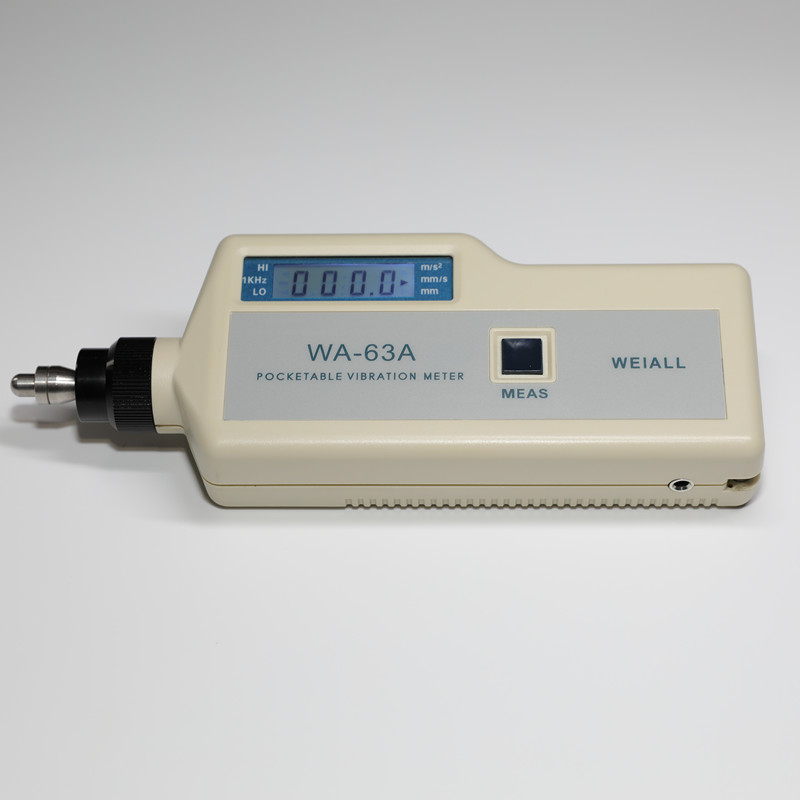

WA-63A Vibration Meter

 The WA-63A Vibration Meter accurately measures vibration velocity, acceleration and displacement with high precision and reliable readings, ideal for industrial equipment condition monitoring and fault diagnosis.


Shenzhen WeiAo Instrument Co., Ltd. provides one-stop services covering R&D, production, sales and support. With technological innovation as our core and precision manufacturing as our foundation, we specialize in high-end instrumentation, empowering industrial testing with reliable, professional and cost-effective solutions.

一：Outline

The WA-63A is a vibration meter designed for easy measurement of vibrations in rotational machinery or the like. Measurement is performed simply by holding the tip of the unit against the measurement object and operating one button. The unit can measure acceleration, velocity and displacement. For acceleration ,Two measurement ranges(10Hz to 1kHz or 1kHz to 15kHz)can be selected.

The unit operates on a single 9-volt battery (6F22).There is no power switch, Because the auto power off function shuts the unit off automatically.

二：Specifications

Piezoelectric accelerometer ( type)

Measurement range

Acceleration：0.1～199.9m/ s² Peak(RMS×1.414)

Velocity： 0.1～199.9 mm/s RMS

Displacement： 0.001～1.999 mm P-P(RMS×2.828)

Measurement accuracy：80Hz

Acceleration: ±5% ±2 digits

Measurement frequency range

Acceleration：10Hz～1kHz(LO)

1kHz～15kHz(HI)

Velocity：10Hz～1kHz

Displacement ：10Hz～1kHz

The battery ：6F22(9V)×1

Power supply ： 9V 7mA

Battery life :  About 25h continuous use(at25℃with manganese battery).

Ambient conditions:-10 to +50℃ , 30 to 90%RH(no condensation).

三：The packing list

WA-63A                                                    1

The battery 9V（Non rechargeable)     1

Instruction manual                                1

Inspection certificate                            1

Hand strap                                              1

FAQ

Q1:Why choose weiao?
1.      100% QC inspection Before Shipment.
2.      Best Service and competitive Price.
3.       Delivery Time so fast.

Q2:Can I get samples?
Yes, certainly.      We will provide the existing samples for free, Sample fee is refundable when you make anorder from us.

Q3.     What about the lead time?
When you complete the payment, we will send it to you within 1-3 days.
According to the courier company you choose, you can receive our products in front of your house in the fastest 3-5 days.

Q4:What is the payment method we can support?
You can pay by TT transfer,Payapal for small amount .
