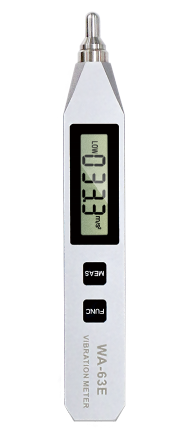

The WA-63E Vibration Meter features a sturdy aluminum alloy casing and built-in rechargeable lithium battery. It accurately measures vibration velocity, acceleration and displacement with stable and reliable performance.
Shenzhen WeiAo Instrument Co., Ltd. provides one-stop services for R&D, production and sales, with technological precision you can trust.
0755-89603811 86+ 18026900716
Technical Parameters
Model：WA-63E
Measurement function: acceleration/velocity/displacement
Work Environment ：Temperature 0 degrees ~40 degrees, relative humidity 30~90RH
Fequency Range：accelerated speed：10Hz～1KHz（L0W）
1KHz～15KHz(HI)
speed : 10Hz ～ 1KHz
displacement ：10Hz～500Hz
Range of Measurement ：accelerated speed：0.1～199.9m/s2 Peak(RMS×1.414)
speed：0.1～199.9 mm/s RMS
displacement：0.001～1.999 mm P-P(RMS×2.828)
Measuring accuracy: accuracy: ±5% + 2 word reading (% + word), calibration period for one year；
Display mode: 3 semi-liquid crystal display
Standard of Security : GB 4793.1—2007
Pollution level: level 2
Power : built-in 3.7V lithium battery, full of electricity use about 30 hours

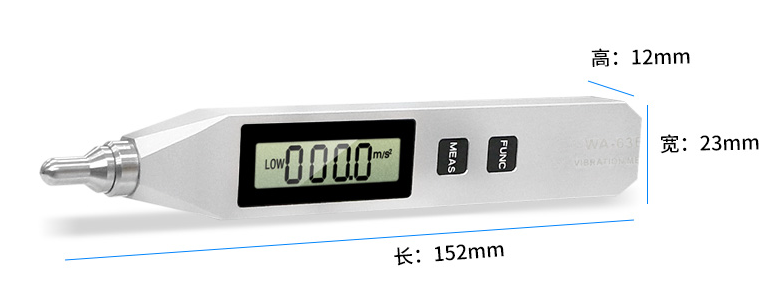

Size：152mmx23mmx12mm(LxWxH）
Weight：75g
FAQ
Q1:Why choose weiao?
1. 100% QC inspection Before Shipment.
2. Best Service and competitive Price.
3. Delivery Time so fast.
Q2:Can I get samples?
Yes, certainly. We will provide the existing samples for free, Sample fee is refundable when you make anorder from us.
Q3. What about the lead time?
When you complete the payment, we will send it to you within 1-3 days.
According to the courier company you choose, you can receive our products in front of your house in the fastest 3-5 days.
Q4:What is the payment method we can support?
You can pay by TT transfer,Payapal for small amount .
